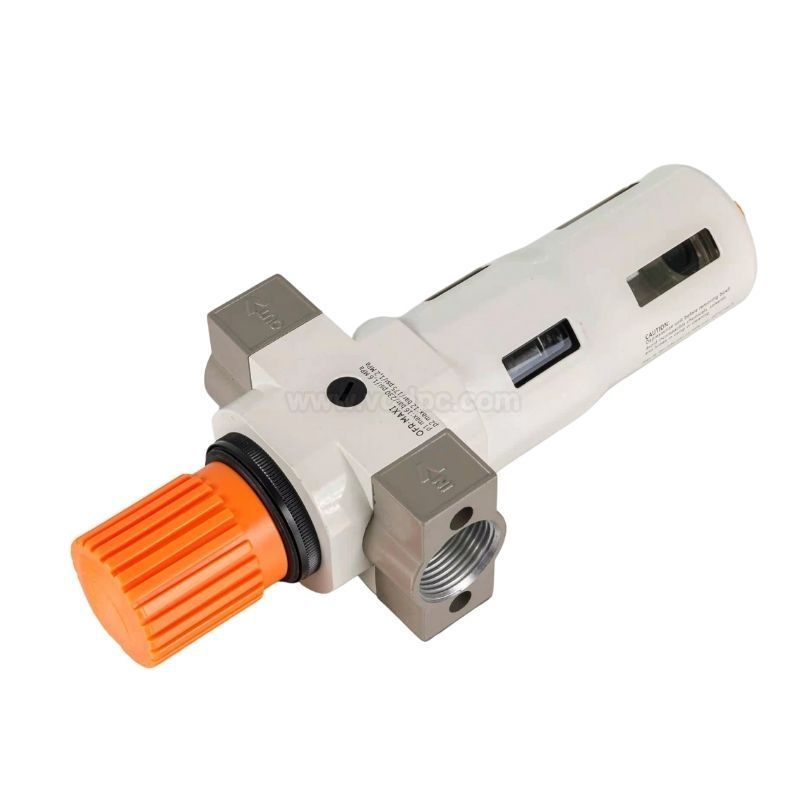

Pneumatic Source Treatment OFR Series Air Regulator and filter

Temperature Range: 0-60 Degree
Primary Pressure of 1-16 bar
Body Material: Aluminum Die-casting Forming
Prepares Air Properly For All Types Of Compressed Air Tools And Equipment
The Filter Removes Solid Particles And Condensates With Compressed Air
Step Less Regulator Accurately Maintains Air Pressure Over A Wide Range Of Flows
Protect Your Air Tools With Much Longer Life

OFR
Model	MIN			MIDI			MAXI
	OFR-1/8"-MINI	OFR-1/4"-MINI	OFR-3/8"-MINI	OFR-3/8"-MIDI	OFR-1/2"-MIDI	OFR-3/4"-MIDI	OFR-3/4"-MAXI	OFR-1"-MAXI
	OFR-1/8"--7MINI	OFR-1/4"--7MINI	OFR-3/8"--7MINI	OFR-3/8"-7-MIDI	OFR-1/2"-7-MIDI	OFR-3/4"-7-MIDI	OFR-3/4"-7-MAXI	OFR-1"-7-MAXI
	OFR-1/8"-5M-MINI	OFR-1/4"-5M-MINI	OFR-3/8"-5M-MINI	OFR-3/8"-5M-MIDI	OFR-1/2"-5M-MIDI	OFR-3/4"-5M-MIDI	OFR-3/4"-5M-MAXI	OFR-1"-5M-MAXI
Working Medium	Filtered compressed Air
Working Medium	Filtered compressed Air
Features of Structure	Sintered filter with water sseparator;MINI/MID:Diaphragm type-regulator;MAXI:Piston regulator
Features of Structure
Mounting Type	pipe mounting or foot mounting
Assembly position	vertical±5
Connection	G1/8"	G1/4"	G3/8"	G3/8"	G1/2"	G3/4"	G3/4"	G1"
Standard Flow Rate	750	1400	1600	3100	3400	3400	9000	10000
	900	1500	1700	3400	3900	3900	9500	16000
	650	1200	1350	2400	2500	2500	7300	7600
Working Pressure	0.5-12 bar/0.5-7bar
Working Pressure	0.5-12 bar/0.5-7bar
Working Temperature	0-60°C
Working Temperature	0-60°C
Primary Pressure	1-16 bar
Primary Pressure	1-16 bar
Grade of filtration	40um/5um
Max.Capacity	22ml
recommended Oil	ISO VG32 or Equivalent Oil
Min Lubricant Flow Rate	3L/MIN			6L/MIN			10L/MIN
