3way Electronic Control valve

  • 3way Micro Electronic Control valve for gas
  • 3way Micro Electronic Control valve for gas

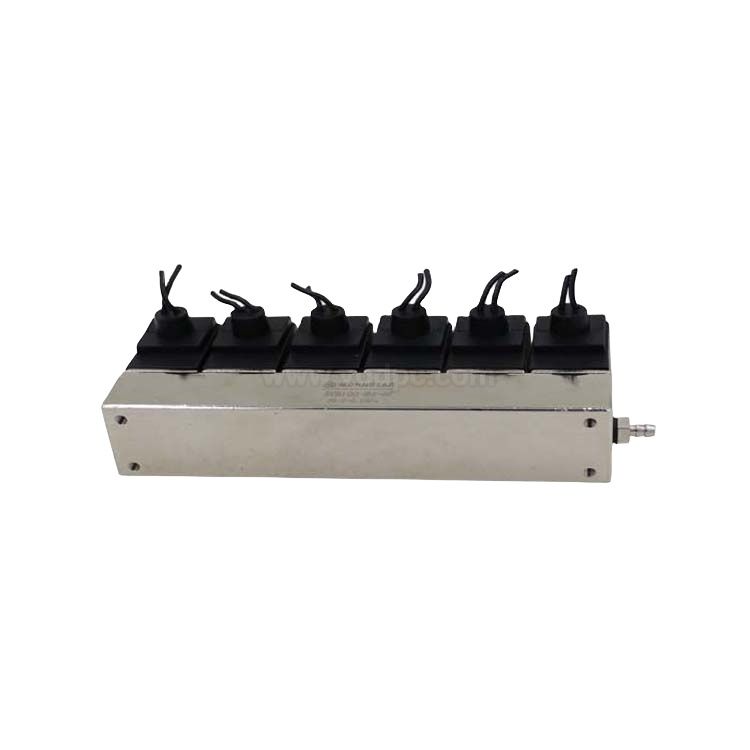

3way Micro Electronic Control valve for gas

This Micro Electronic Control valve for gas is widely used in the field of fluid control, with a flow diameter that can cover 0.7mm~1.4mm. It has a small overall appearance and compact structure, making it very suitable for working conditions with strict installation space requirements.

  • Model Number:3VB100-04
  • Colors:
  • Views:1
  •   :
This Micro Electronic Control valve for gas is widely used in the field of fluid control, with a flow diameter that can cover 0.7mm~1.4mm. It has a small overall appearance and compact structure, making it very suitable for working conditions with strict installation space requirements.

 Specifications



Model 3VB100-04-5G
Port and Position 3port,2position
Port size M5×0.8;PT1/8
Flow orifice 1.0mm or other
Working medium Air
Working Pressure 0 - 7Bar
Working temperature -20 - 80℃
Normal Body material Brass or other
Normal Seal material MQ or other
Coil voltage Standard:12VDC、24VDC、220VAC
Coil Power 0.6W - 3W
Coil Protection class IP65
Max.Working frequency 10 Cycles/Second
Max.Using life 35000000 Cycles
