2way Electronic Control valve

  • 2way Micro Electronic Control valvefor gas and water fluids
  • 2way Micro Electronic Control valvefor gas and water fluids
  • 2way Micro Electronic Control valvefor gas and water fluids

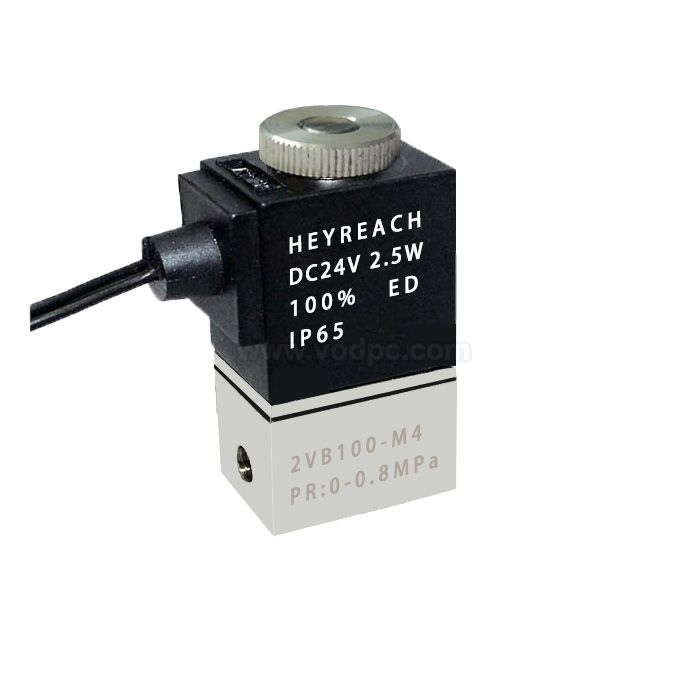

2way Micro Electronic Control valvefor gas and water fluids

This miniature electromagnetic valve is widely used in the field of fluid control, with a flow diameter that can cover 0.8mm~2.0mm. It has a small overall appearance and compact structure, making it very suitable for working conditions with strict installation space requirements.

  • Model Number:2VB100-04
  • Colors:
  • Views:7
  •   :
This miniature electromagnetic valve is widely used in the field of fluid control, with a flow diameter that can cover 0.8mm~2.0mm. It has a small overall appearance and compact structure, making it very suitable for working conditions with strict installation space requirements.

 Specifications



Model 2VB100-04-6G
Port and Position 2port,2position
Port size M5×0.8;PT1/8
Flow orifice 0.7mm;1.0mm;1.4mm;2.3mm
Working medium Air,water,Light oil
Working Pressure 0 - 7Bar
Working temperature -20 - 80℃
Normal Body material Brass or other
Normal Seal material MQ or other
Coil voltage Standard:12VDC、24VDC、220VAC
Coil Power 0.6W - 3W
Coil Protection class IP65
Max.Working frequency 10 Cycles/Second
Max.Using life 35000000 Cycles
