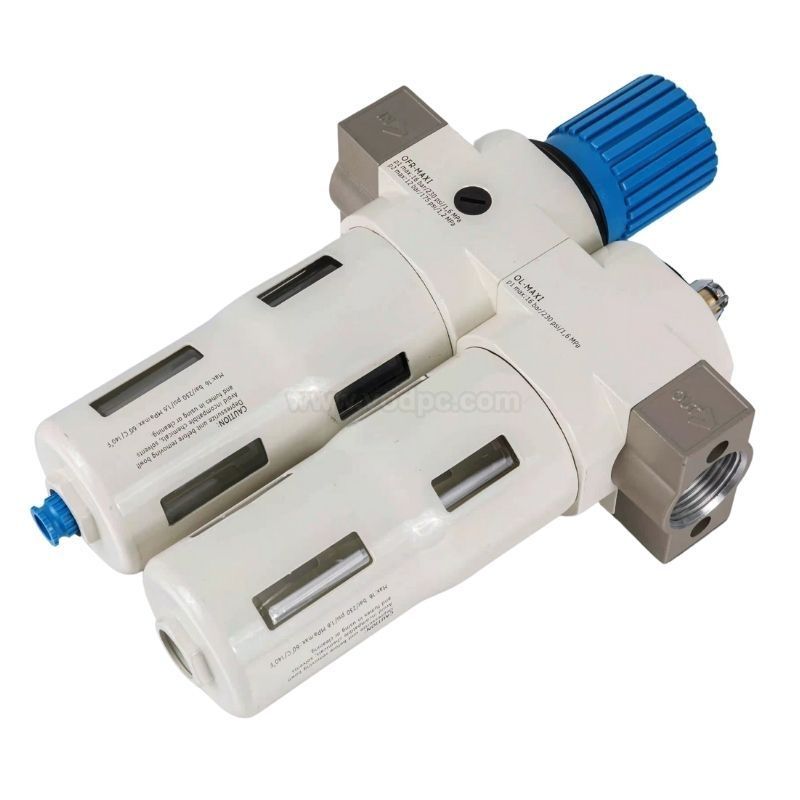

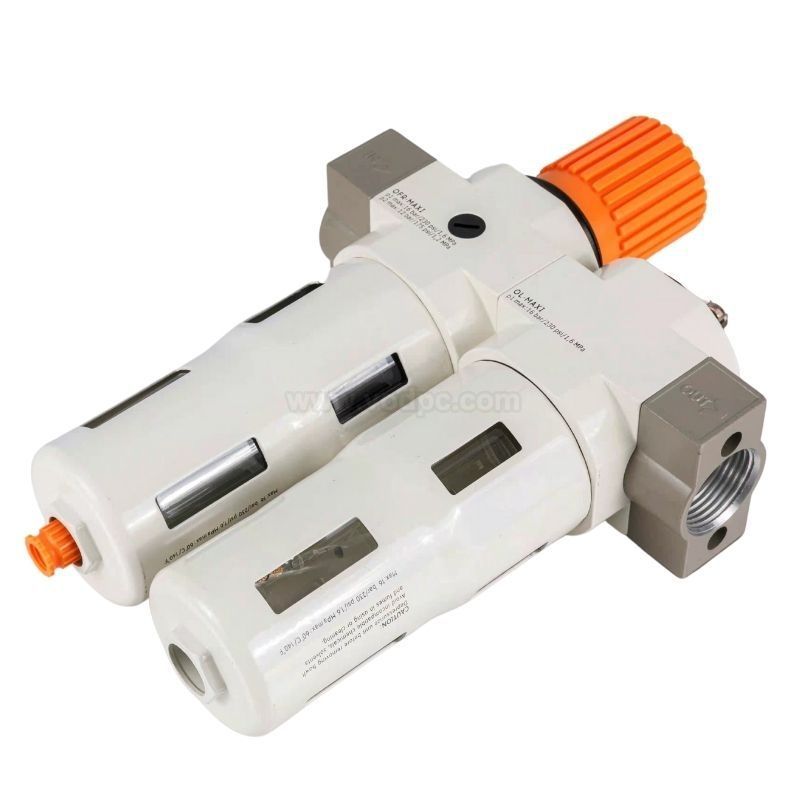

Pneumatic Source Treatment OU Series Compressed Filter Air Regulator

OU Series Compressed Filter Air Regulator

Model Number：OU-1/4-MINI,OU-3/8,OU-1/2-MIDI
Colors：
Views：1
：
Share this:

Overview

Temperature Range: 0-60 Degree
Working Medium: Filtered compressed Air
Body Material: Zinc Alloy
Prepares Air Properly For All Types Of Compressed Air Tools And Equipment
The Filter Removes Solid Particles And Condensates With Compressed Air
Step Less Regulator Accurately Maintains Air Pressure Over A Wide Range Of Flows
Micro-Fog Lubricator Supplies Lubricating Oil To Working Pneumatic Equipment In Proper Proportion
Protect Your Air Tools With Much Longer Life

Specifications

Model	MIN			MIDI			MAXI
	OU-1/8"-MINI	OU-1/4"-MINI	OU-3/8"-MINI	OU-3/8"-MIDI	OU-1/2"-MIDI	OU-3/4"-MIDI	OU-3/4"-MAXI	OU-1"-MAXI
	OU-1/8"--7MINI	OU-1/4"--7MINI	OU-3/8"--7MINI	OU-3/8"-7-MIDI	OU-1/2"-7-MIDI	OU-3/4"-7-MIDI	OU-3/4"-7-MAXI	OU-1"-7-MAXI
	OU-1/8"-5M-MINI	OU-1/4"-5M-MINI	OU-3/8"-5M-MINI	OU-3/8"-5M-MIDI	OU-1/2"-5M-MIDI	OU-3/4"-5M-MIDI	OU-3/4"-5M-MAXI	OU-1"-5M-MAXI
Working Medium	Filtered compressed Air
Working Medium	Filtered compressed Air
Features of Structure	Sintered filter with water separator The direct Constant-density Lubricator
Features of Structure
Mounting Type	pipe mounting or foot mounting
Assembly position	vertical±5
Connection	G1/8"	G1/4"	G3/8"	G3/8"	G1/2"	G3/4"	G3/4"	G1"
Standard Flow Rate	700	1000	1200	2000	2600	2600	7000	8000
	800	1300	1500	2500	2800	2800	8500	8700
	600	850	1050	1700	1800	2100	6500	7200
Working Pressure	0.5~12 bar/o.5~7bar
Working Pressure	0.5~12 bar/o.5~7bar
Working Temperature	0-60°C
Working Temperature	0-60°C
Primary Pressure	Manual drain valve:1-16 bar Automatic drain valve:1.5~12bar
Primary Pressure	Manual drain valve:1-16 bar Automatic drain valve:1.5~12bar
Grade of filtration	40um/5um
Max.Capacity	22ml
recommended Oil	ISO VG32 or Equivalent Oil
Min Lubricant Flow Rate	3L/MIN			6L/MIN			10L/MIN
