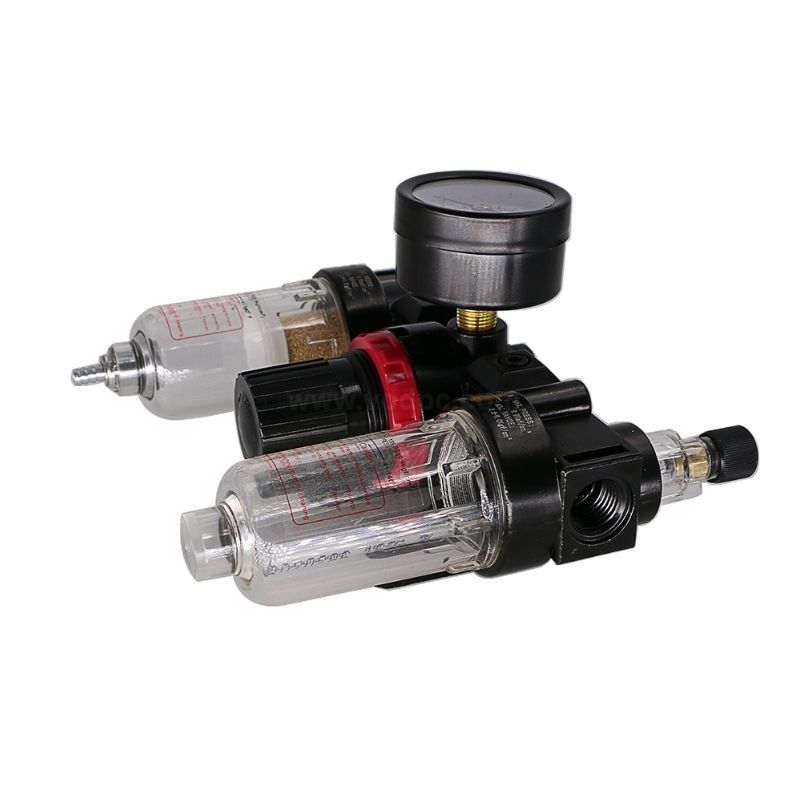

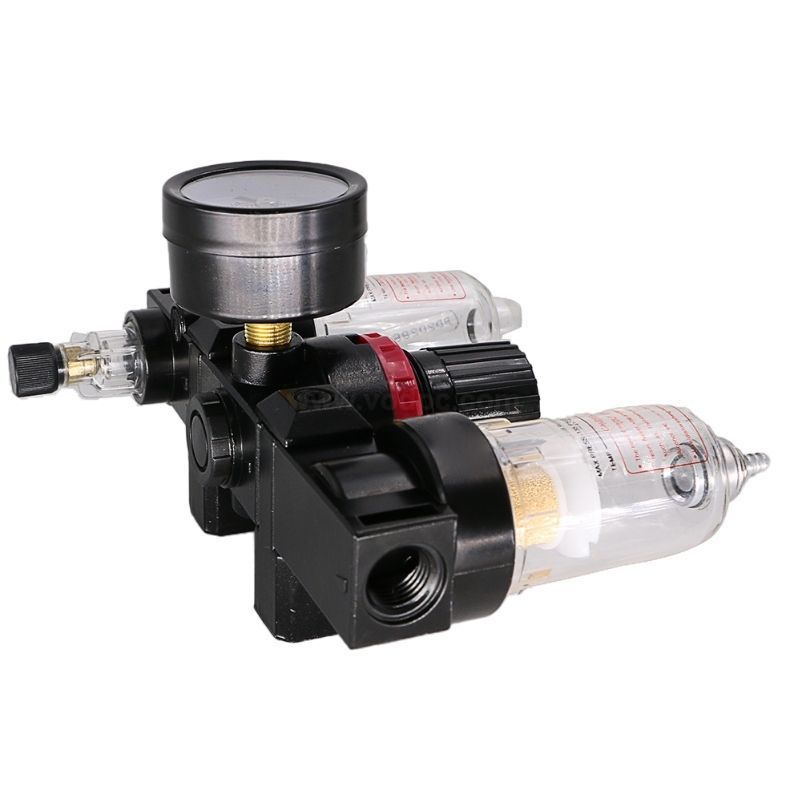

Pneumatic AC2000 Filter Regulator Lubricator Air Filter Combination

Series AC Air Filter Combination including

Model Number：AC2000,BC2000,BC3000,BC4000
Colors：
Views：2
：
Share this:

Overview

Temperature Range: 5-60 Degree
Max. Pressure of 0.95Mpa
Body Material: Aluminum Alloy
Prepares Air Properly For All Types Of Compressed Air Tools And Equipment
The Filter Removes Solid Particles And Condensates With Compressed Air
Step Less Regulator Accurately Maintains Air Pressure Over A Wide Range Of Flows
Micro-Fog Lubricator Supplies Lubricating Oil To Working Pneumatic Equipment In Proper Proportion
Protect Your Air Tools With Much Longer Life

Specifications

Model		AC1500	AC2000	BC2000	BC3000	BC4000
Working medium		AIR
Port size		G1/8	G1/4	G1/4	G3/8	G1/2
Filter precision		25um(5,40um is optional)
Adjusting pressure range		0.05~0.85Mpa
Max.Adjusting pressure		0.95Mpa
Guaranteed.pressure		1.5Mpa
Working temperature		5~60°C
Filter bowl capacity		15(CC)		60(CC)
Lubricator bowl capacity		25(CC)		90(CC)
Recommended Oil		ISO VG32 or equicalent Oil
Weight		0.7kg		0.9kg
components	Filter	AF1500	AF2000	BF2000	BF3000	BF4000
	Regulator	AR1500	AR2000	BR2000	BR3000	BR4000
	Lubricator	AL1500	AL2000	BL2000	BL3000	BL4000
